Compare cabbing machines, combination machines and flat laps. Find specifications, parts and manuals for current and older models.
20 machines
Clear filtersPrices are in US dollars. Delivery, tax and items sold separately can add to the total.
8300048 · belt package · Cabbing machine
The GP6 Diamond combines two grinding wheels with one expandable sanding drum. You change belts on the drum as you move through the sanding grits.
170553 · six-wheel package · Cabbing machine
The GP6-6 keeps six wheels mounted: two grinding wheels and four Nova sanding wheels. Each wheel has its own water valve.
168077 · basic package · Cabbing machine
The GP8 combines two eight-inch grinding wheels with a three-inch-wide sanding drum. You polish on an end disc.

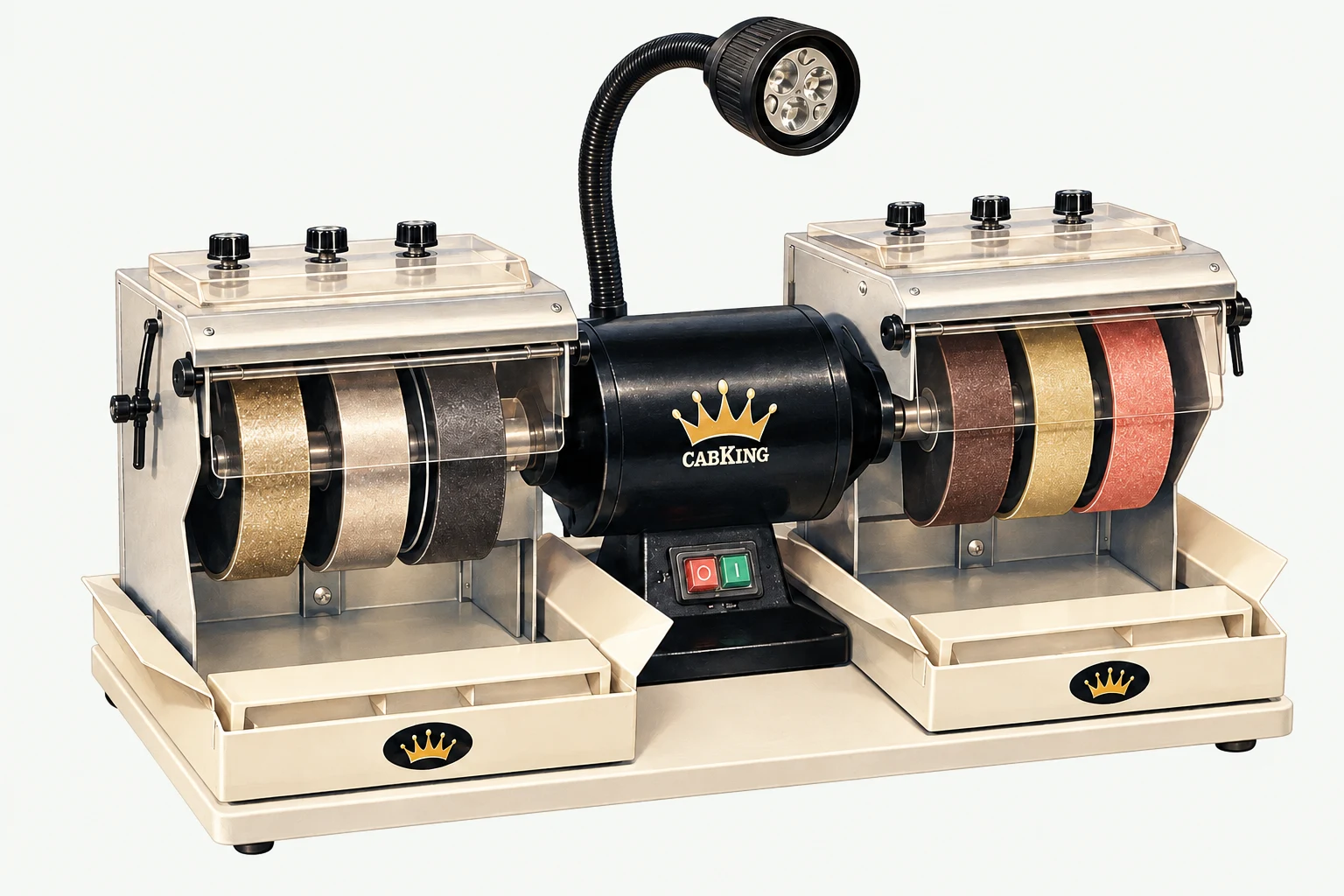

The six-wheel CabKing 6 is 27 inches long in CabKing's listing. A separate pump supplies water to its wheels.
The CabKing 8 weighs 160 lb and measures 42 inches long in CabKing's US listing. Its eight-inch wheels need more bench space than the CabKing 6.
6CU · diamond package · Combination machine
$1,595 USDListed price on 24 September 2026
Covington's six-inch combination machine puts a trim saw, grinding wheels, sanding drum and polishing disc on one base.
8CU · diamond package · Combination machine
$2,895 USDListed price on 24 September 2026
The Deluxe Combination uses separate motors for its ten-inch trim saw and eight-inch grinding station.
September 2026 listing · 115 V or 230 V · Cabbing machine
$2,950–$3,075 USDListed price on 22 September 2026
The Genie still uses six-inch wheels, but Diamond Pacific's 2020 catalogue describes a different motor from its 2007 catalogue. An older machine may need different electrical parts.
September 2026 listing · 115 V or 230 V · Cabbing machine
$2,250 USDListed price on 24 September 2026
The Pixie fits six four-inch wheels on a 14½ × 18 in baseboard. Diamond Pacific gives its weight, with the lamp, as under 30 lb.
September 2026 listing · 60 Hz or 50 Hz versions · Cabbing machine
$4,615–$4,895 USDListed price on 24 September 2026
The Titan takes 7⅝-inch wheels. Its 2020 catalogue package has wider Nova sanding wheels than Galaxy grinding wheels. Diamond Pacific arranges purchases and shipping through customer service; its online stock indicator does not show actual availability.
6-inch rock/mineral kit · 20-021 (110 V) · Flat lap
$599 USDListed price on 24 September 2026
The 6-inch All-U-Need holds one horizontal disc at a time. You change discs between grinding, smoothing and polishing.
8-inch rock/mineral kit · 21-003 (110 V) · Flat lap
$699 USDListed price on 24 September 2026
The 8-inch All-U-Need holds one horizontal disc at a time. You change discs between grinding, smoothing and polishing.
6-inch rock/mineral kit · 20-005 (110 V) · Flat lap
$599 USDListed price on 24 September 2026
The 6-inch Slant Cabber holds one disc at a time, tilted toward you. You change discs between grinding, smoothing and polishing.
8-inch rock/mineral kit · 20-006 (110 V) · Flat lap
$699 USDListed price on 24 September 2026
The 8-inch Slant Cabber holds one disc at a time, tilted toward you. You change discs between grinding, smoothing and polishing.

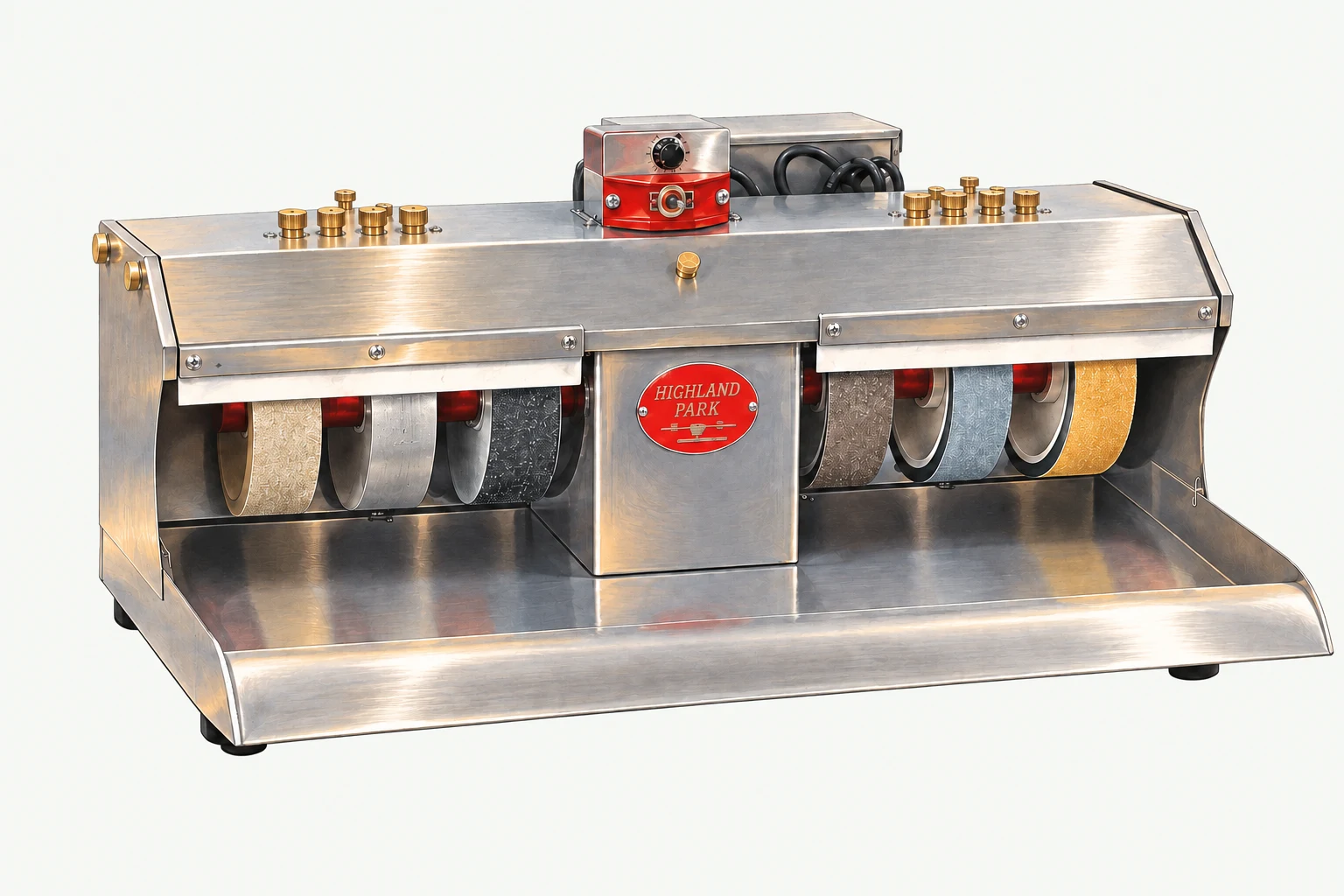

CB6V · 110 V listing · Cabbing machine
$1,597 USDListed price on 22 September 2026
The CB6V lets you adjust the speed of its six-inch wheels. Highland Park sells the water reservoir kit separately, so include it when pricing the machine.
CB8V-110W · wheels included · 110 V · Cabbing machine
$2,845 USDListed price on 24 September 2026
The CB8V drives six eight-inch wheels with a variable-speed, 1 hp motor. For 1½-inch-wide wheels, Highland Park specifies 1½-inch gaps between wheels.
KNC6 Rev 2 · SKU 1-1336 · Cabbing machine
$1,499 USDListed price on 24 September 2026
The Cabber 6 carries six 1½-inch-wide wheels with 1¼-inch gaps. Rev 2 adds replaceable felt strips, a water valve on the hood and hinged side shields.

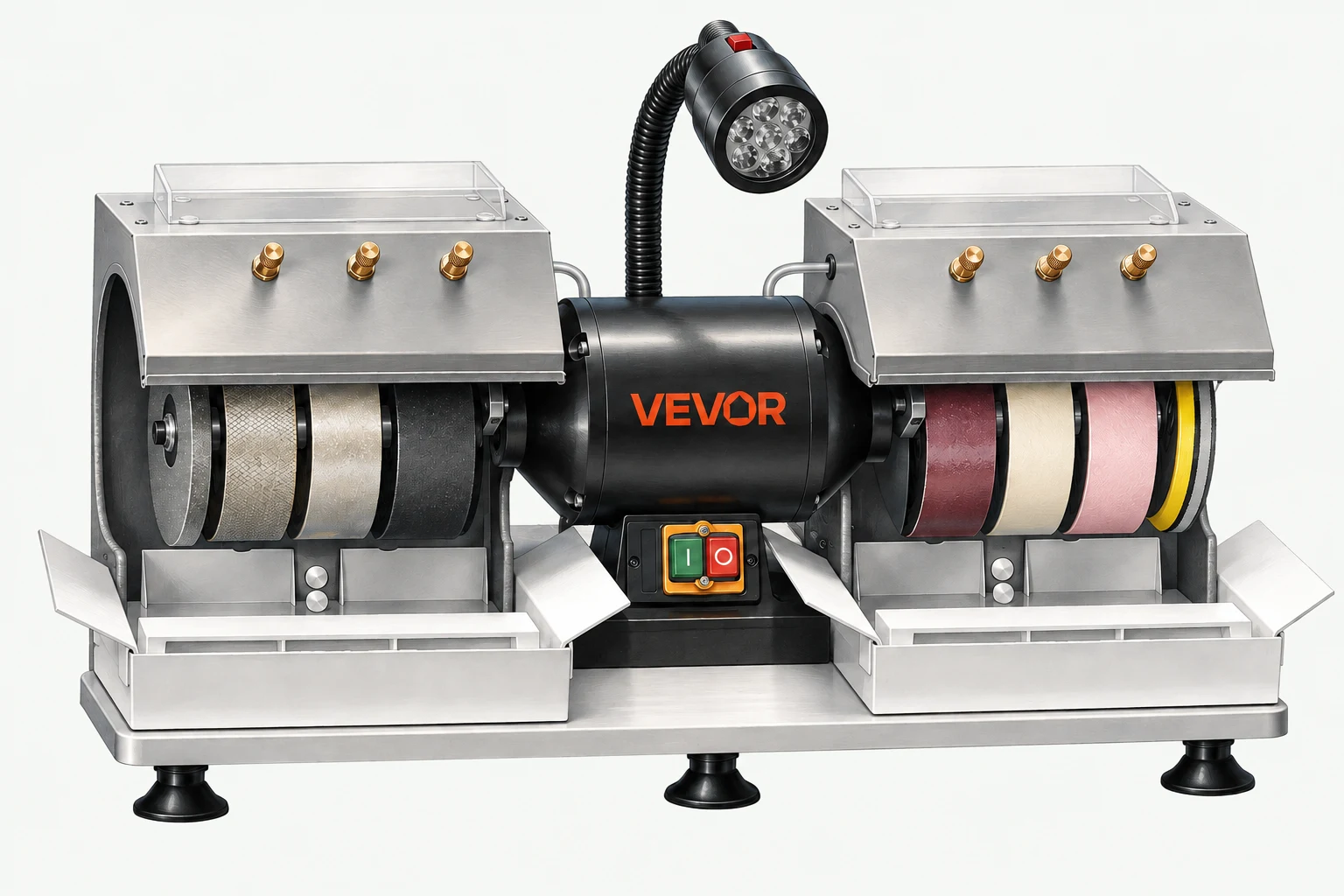

VEVOR's six-wheel, six-inch machine has a 2/5 hp motor and separate water controls for each wheel. Its September 2026 US listing priced it below the CabKing 6 and Highland Park CB6V.

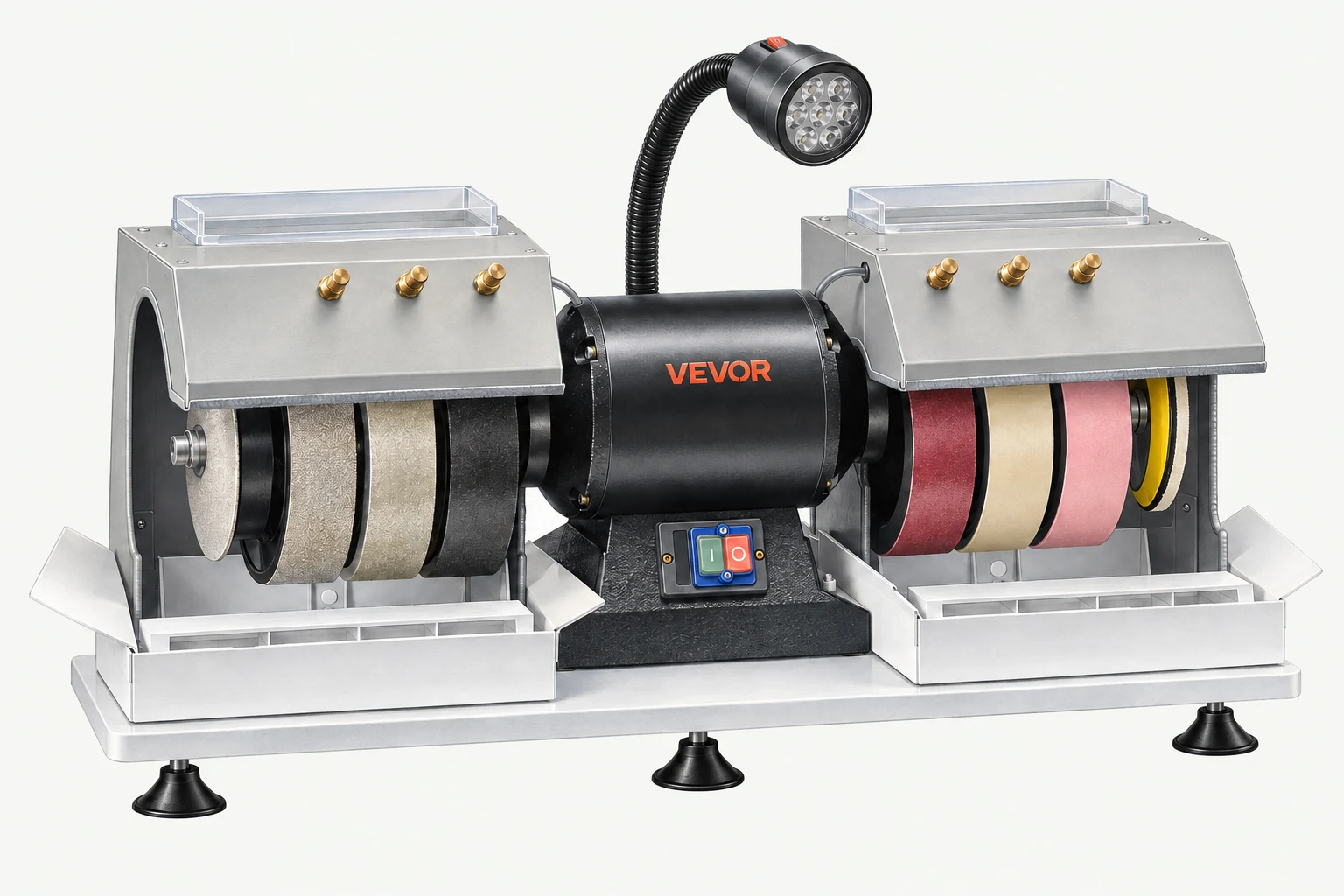

VEVOR's eight-inch machine has a 3/4 hp motor and measures 29.2 inches long in its September 2026 US listing.
Check the model name and motor nameplate on your machine against the dated configuration before ordering parts.

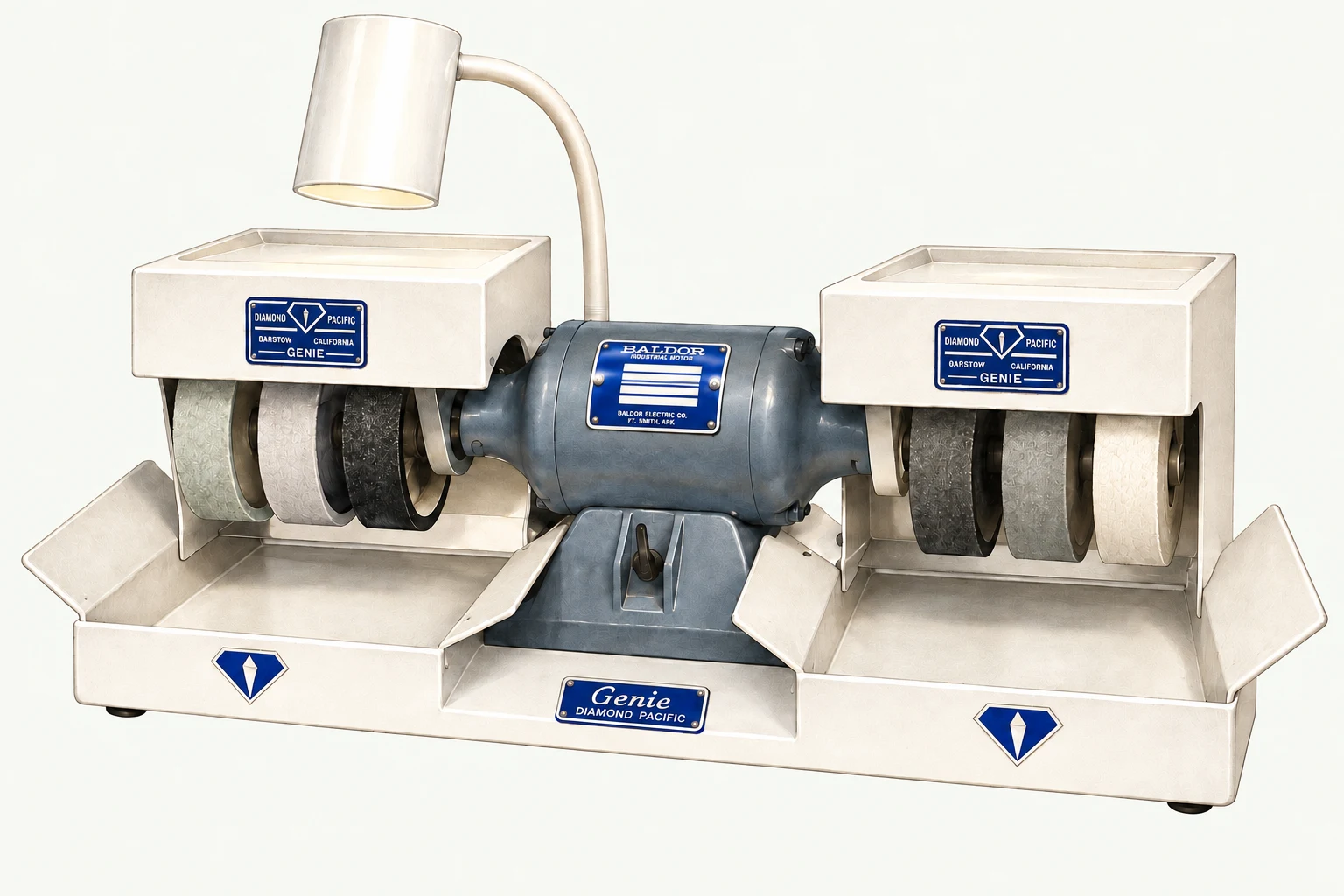

2007 catalogue configuration · 100-GD-100 · Cabbing machine
Diamond Pacific's 2007 and 2010 catalogues describe a six-wheel Genie with a 1/4 hp, 1,800 rpm motor. Later Genies can have different motors and parts.
A cabbing machine grinds and polishes stones into cabochons. Learn the steps before you choose a machine.
